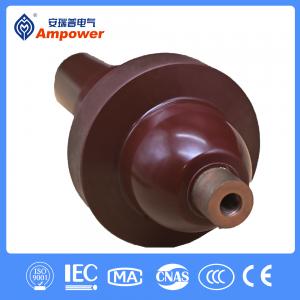

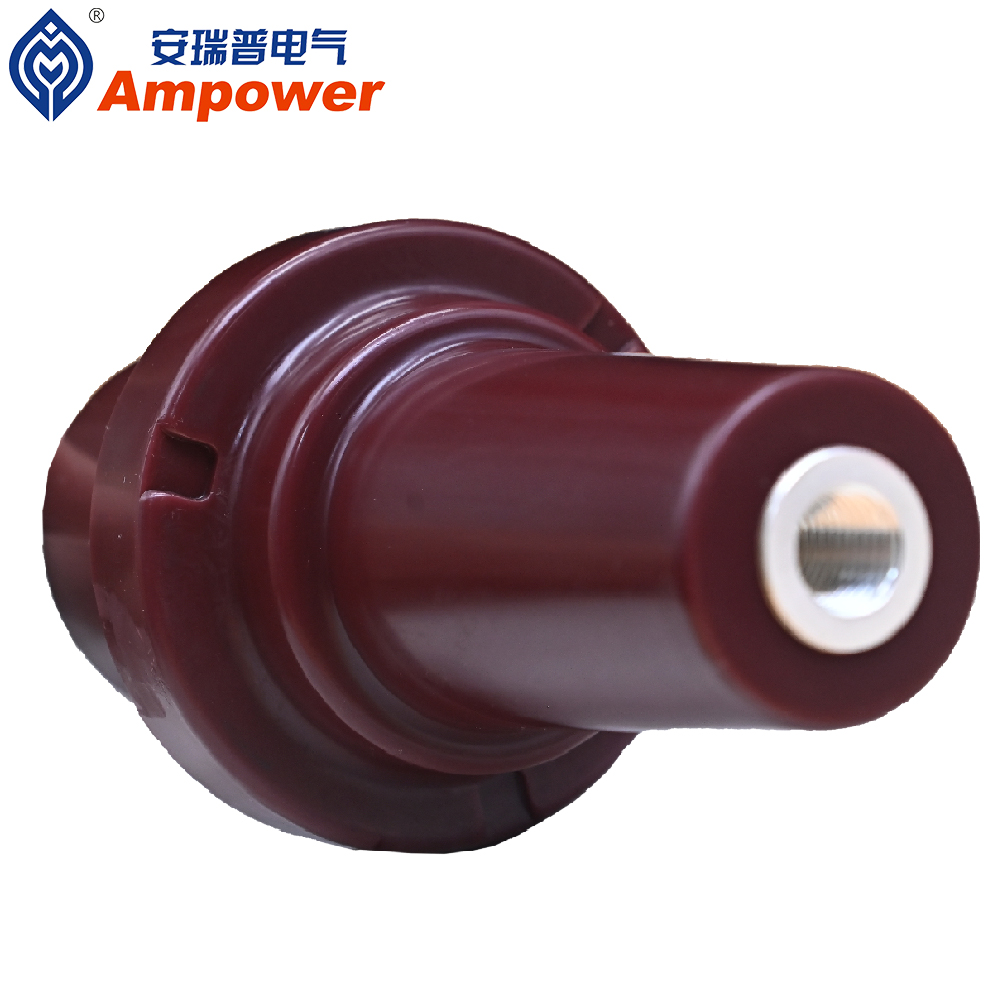

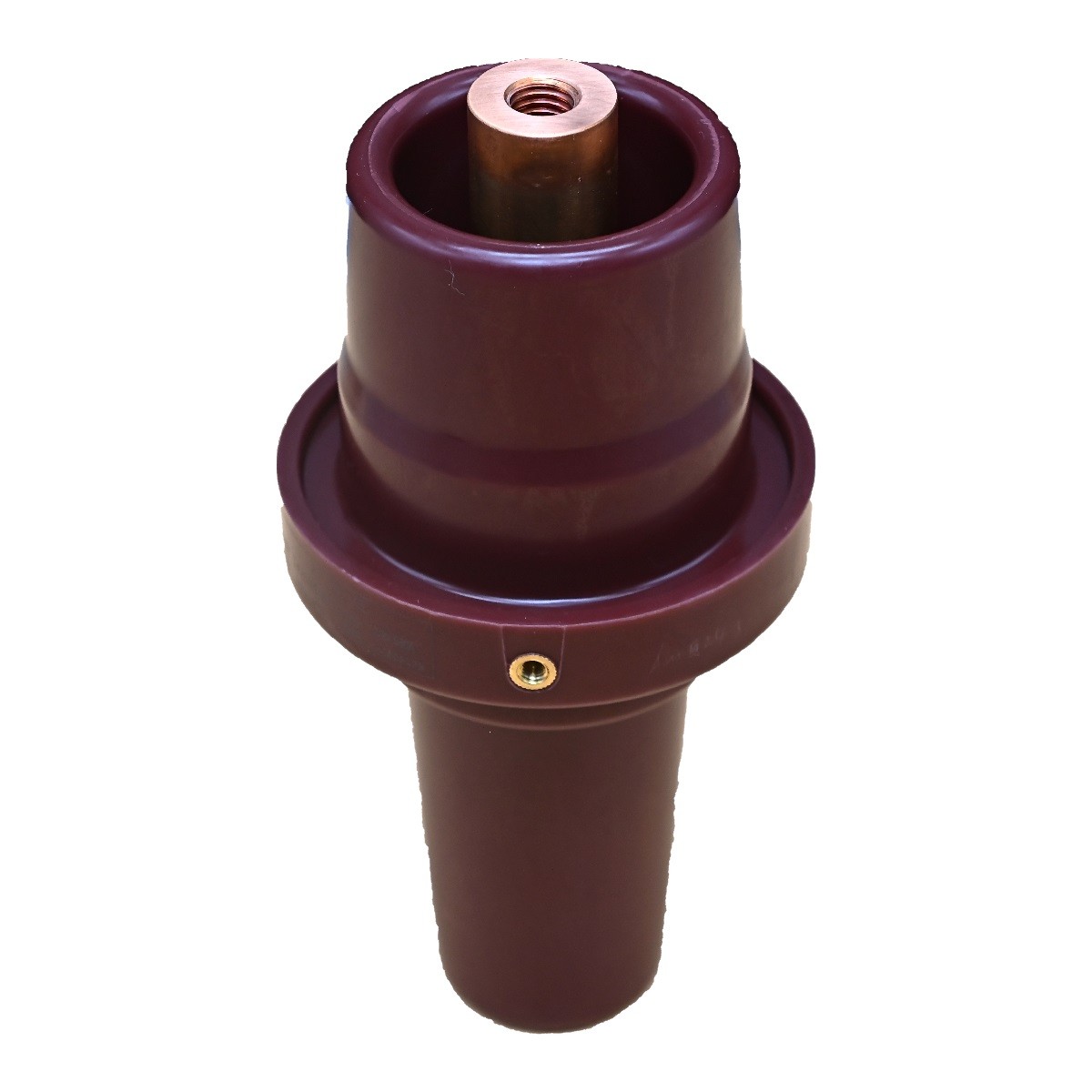

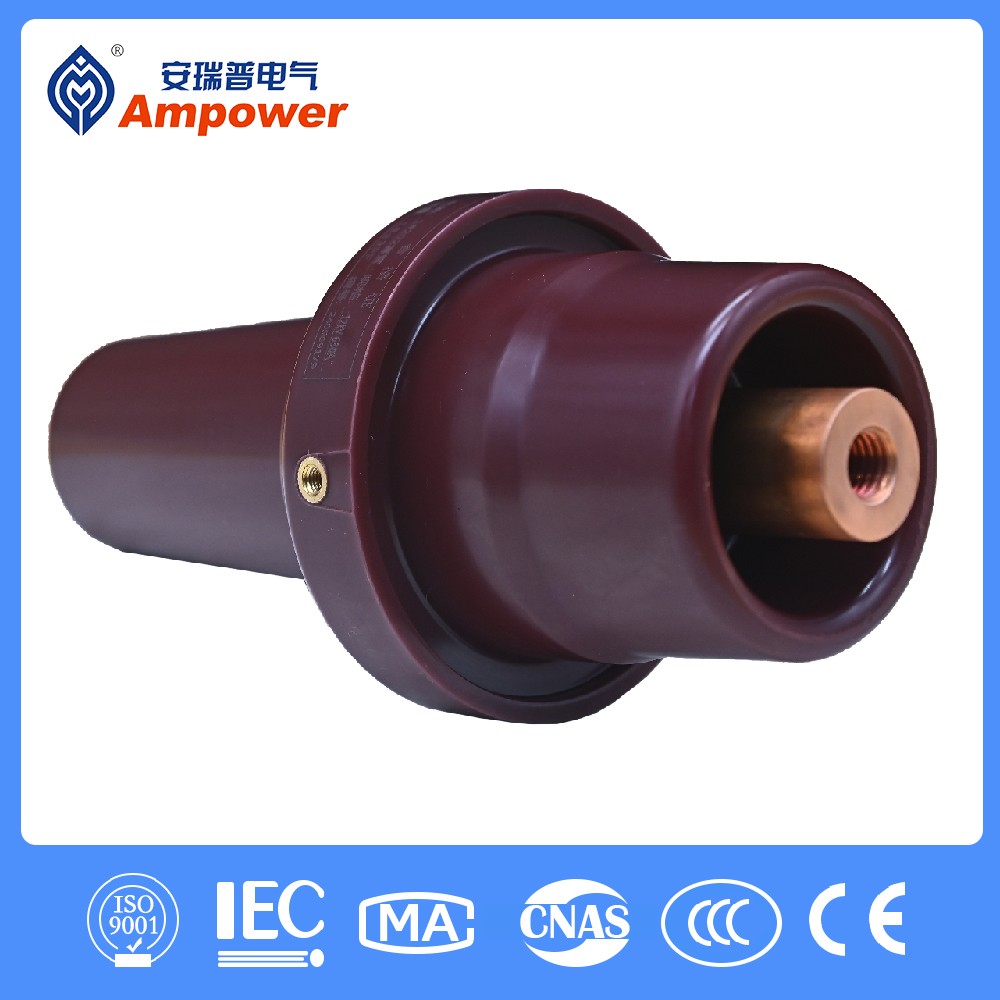

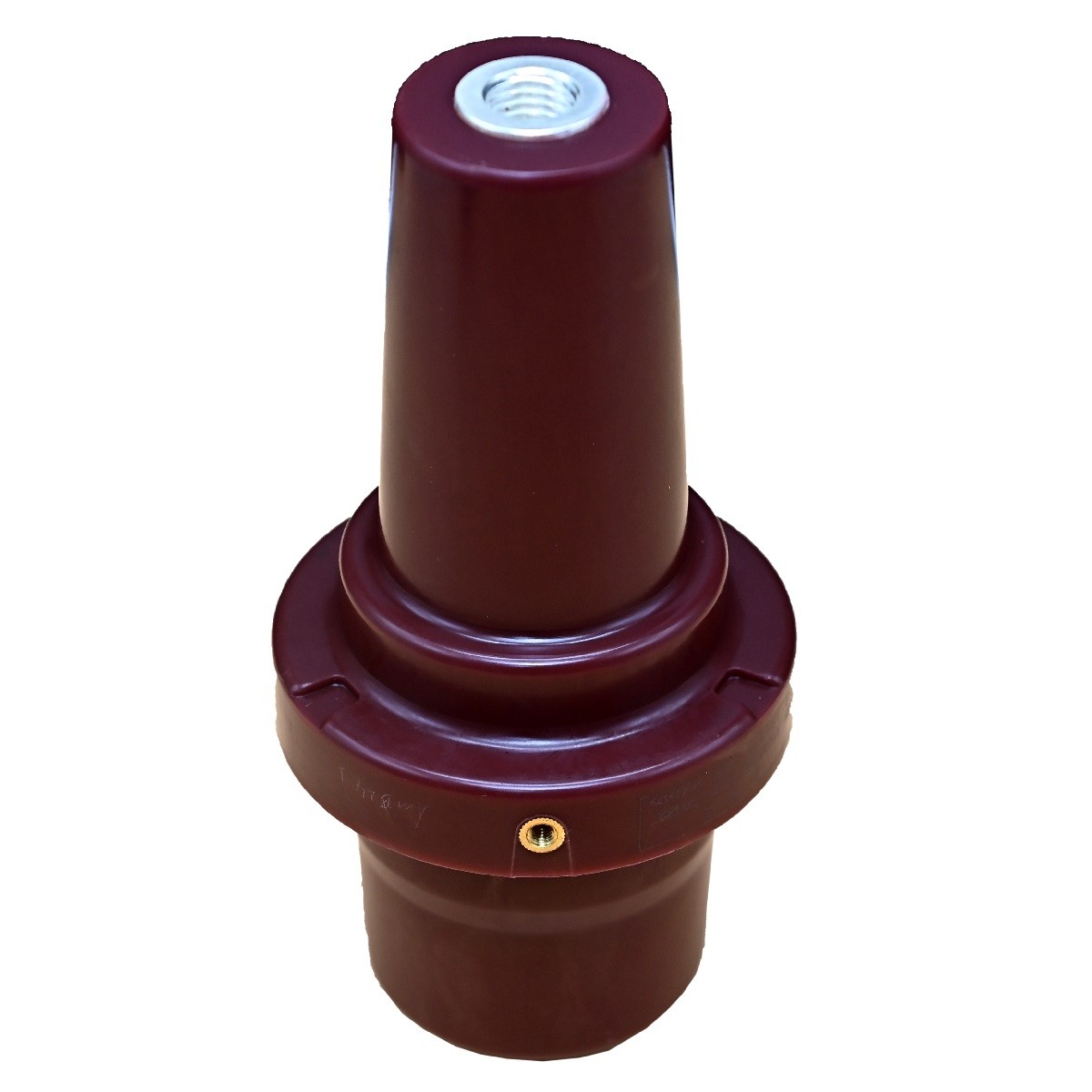

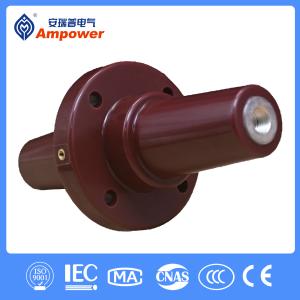

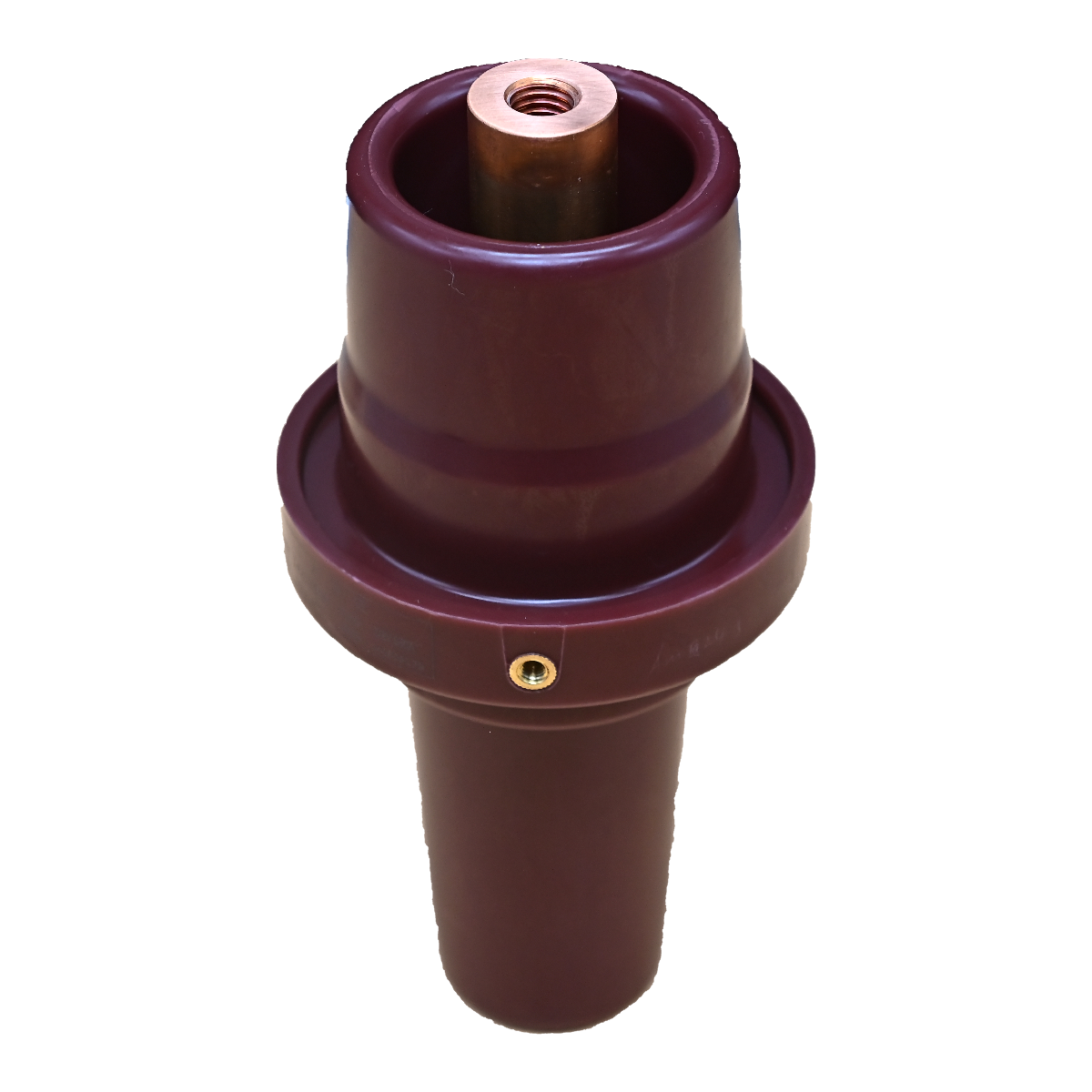

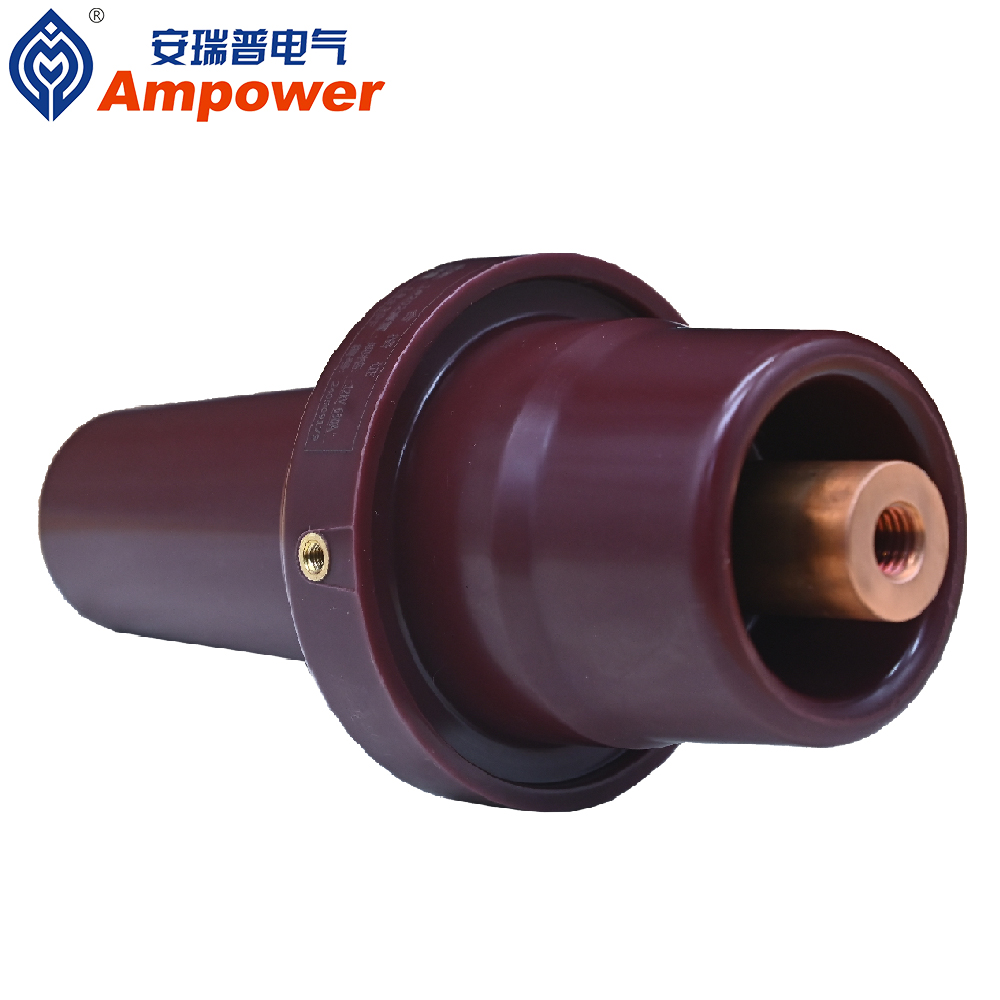

202 bushing is mainly used in gas -filled ring-net cabinet. It can effectively seal the insulation medium in the cabinet and support the connection between the switch cabinet and the cable. Its rated current can be 630A-1250A, and the voltage level can be used for 12kV and 24kV. The casing is made of high quality epoxy resin and red copper conductive rod,and adopts no local discharge in duction network,which can shield grounding or connect live display.
Product Name
1#202bushing
2#202bushing
3#202bushing
Rated current
630A
630A
1250A
Rated voltage
12/24kV
12/24kV
12/24kV
Partial Discharge
14.4-26.4KV<5PC
Power-Frequency withstand Voltage
42-68kV/min
Capacitance value
18±3PF
18±3PF
26±3PF
Scope of application
SF6 Inflatable cabinet

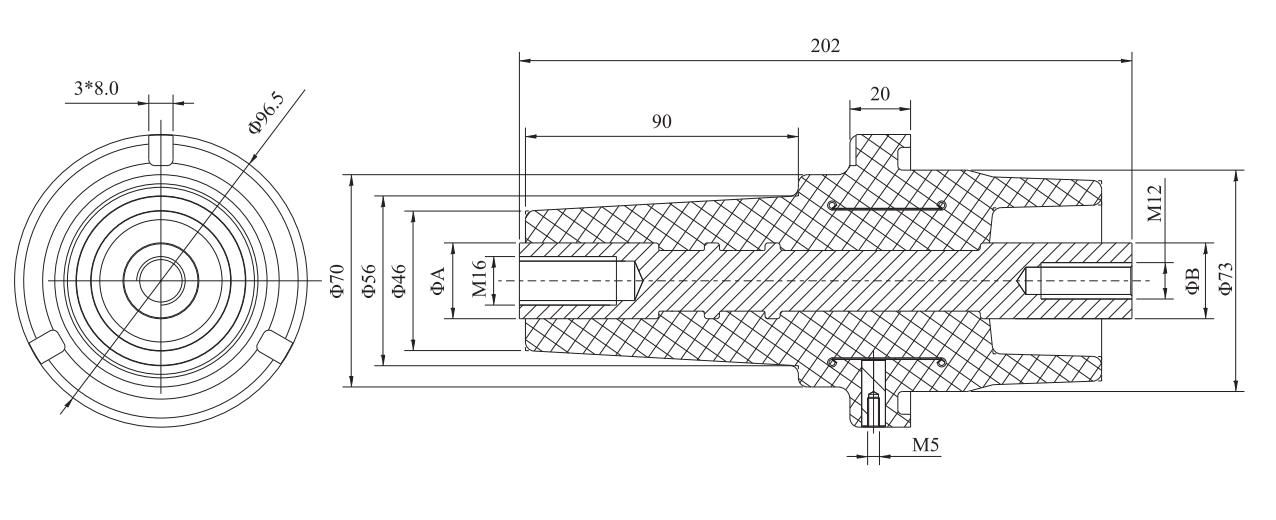

Size
A φ25
φ30
φ30
B
φ25
①25
φ30
Notes
M16 end overlap surface is 400 square meters
